Installation examples of several common occasions for flexible sliding lines

Aluminum rail installation for automated production lines Electric hoist installation Trench installation


Speaker segment

The functional segment that guides the collector from the outside into the slip line. It is mainly used for the ballast and thermal expansion compensation section and can be used as a sliding end cap.

The basic structure of RDX-20 is 2-pole assembly, which can be assembled according to the required number of poles (including single pole)

The basic structure of RDX-14 is 8-pole assembly, which can be assembled according to the required number of poles (including less than 8 poles).

DHR DHR2
Model Numbering Material Quality kg
RDXL-20 0507010 ABS 0.020
RDXS-20 0507020 ABS 0.018
Model Numbering Material Quality kg
RDX-14 0507030 ABS 0.068

Speaker segment application:

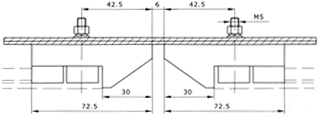

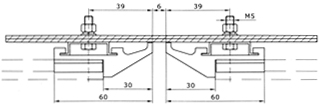

1) Schematic diagram of the installation of the horn section of the switch.

DHR DHR2

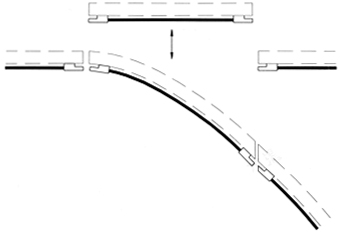

2) Application of the ramp.


Tips for installing the horn section:
1) If the horn segment of the ballast is at an angle to the direction of translation of the ballast, one of the horn segments should be cut to an angle that is consistent with the direction of translation of the ballast;
2) The horn segment must be fixed with the switch;
3) The power supply point should be set on the sliding line connected to the horn section (except for special instructions);
4) The installation error between the two connected horn segments (the same group) is not more than ±3mm;
5) The distance between the two horn segments (reserved clearance) does not exceed 6 mm;
6) The horn section should not exceed 36m near a fixed point.


Solution of thermal expansion and contraction
This kind of sliding line has no special compensation function section. When it is necessary to consider the problem of thermal expansion and contraction, the dispersion compensation method is mainly used to solve.
1) Consider the conditions of thermal expansion and contraction:
a When the temperature difference is large;
b The whole line exceeds 100m;
c When there are a large number of arc segments.
2) Determination of the reserved gap for temperature compensation.
a indicates the reserved gap value between the two standard length slide body.

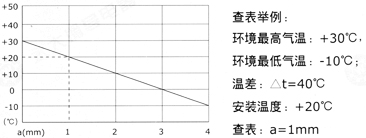

Reserve the gap a value to check the right table:


Current collector

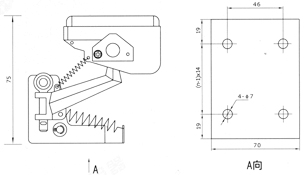

There are two types of current collectors, JDS type and JDR type, and any current collector must meet the respective installation conditions. For the JDS type, refer to the DHB type slide line section. Only JDR type current collectors are introduced here.

Current collector


instructions
model Numbering The main material Quality kg Description
JDR-15 0501010 C412 0.4 For slides with a gauge of 14mm
